AA88347L - 8-Bit DAC

Agamem

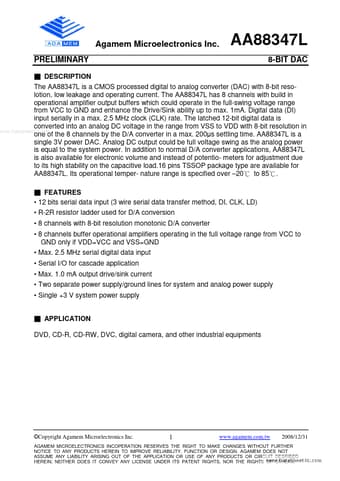

AA88347L Datasheet Preview — Preview of AA88347L PDF

Datasheet Details

Part number	AA88347L
Manufacturer	Agamem
File Size	232.33 KB
Description	8-Bit DAC
Datasheet	AA88347L_Agamem.pdf

AA88347L Product details

Description

AA88347L 8-BIT DAC The AA88347L is a CMOS processed digital to analog converter (DAC) with 8-bit resolotion, low leakage and operating current.The AA88347L has 8 channels with build in operational amplifier output buffers which could operate in the full-swing voltage range from VCC to GND and enhance the Drive/Sink ability up to max.1mA.Digital data (DI) input serially in a max.2.5 MHz clock (CLK) rate.The latched 12-bit digital data is converted into an analog DC voltage in the range fro

Features

>.
12 bits serial data input (3 wire serial data transfer method, DI, CLK, LD).
R-2R resistor ladder used for D/A conversion.
8 channels with 8-bit resolution monotonic D/A converter.
8 channels buffer operational amplifiers operating in the full voltage range from VCC to GND only if VDD=VCC and VSS=GND.
Max. 2.5 MHz serial digital data input.
Serial I/O for cascade.
