AA88349 Datasheet - Agamem Microelectronic

8-BIT DAC

AA88349 Features

* 12 bits serial data input (3 wire serial data transfer method, DI, CLK, LD)

* R-2R resistor ladder used for D/A conversion

* 3 channels with 8-bit resolution monotonic D/A converter

* 3 channels buffer operational amplifiers operating in the full voltage range from

AA88349 General Description

The AA88349 is a CMOS processed digital to analog converter (DAC) with 8-bit resolotion, low leakage and operating current. The AA88349 has 3 channels with build in operational amplifier output buffers which could operate in the full-swing voltage range from VCC to GND and enhance the Drive/Sink ab.

AA88349 Datasheet (231.49 KB)

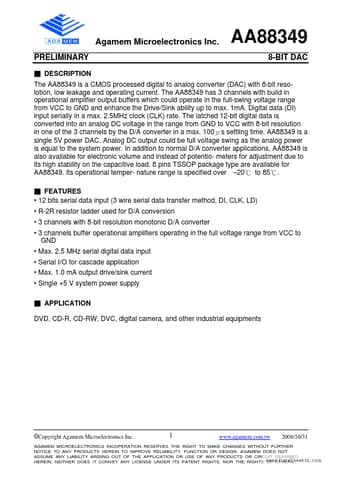

AA88349 Datasheet Preview — Preview of AA88349 PDF

Datasheet Details

Part number:

AA88349

Manufacturer:

Agamem Microelectronic

File Size:

231.49 KB

Description:

8-bit dac.
