A370-11F A370-Type Analog Uncooled Laser Module

The A370-Type Uncooled Laser Module consists of a laser diode coupled to a single-mode ﬁber pigtail. The device is available in a standard, 8-pin conﬁguration (see Figure 1 and/or Table 1) and is ideal for CATV applications. The module includes a multiquantum-well Fabry-Perot (MQW F-P) laser and an .

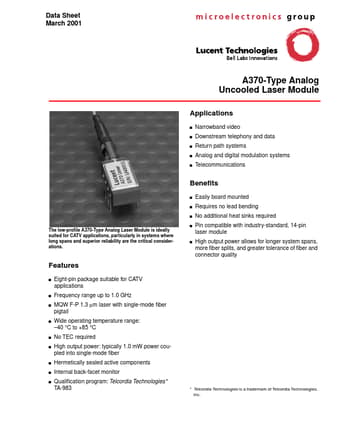

Data Sheet March 2001 A370-Type Analog Uncooled Laser Module Applications s s s s s Narrowband video Downstream telephony and data Return path systems Analog and digital modulation systems Telecommunications Beneﬁts s s s s Easily board mounted Requires no lead bending No additional heat sinks required Pin compatible with industry-standard, 14-pin laser module High output power allows for longer system spans, more ﬁber splits, and greater tolerance of ﬁber and connector quality The low-proﬁ.

A370-11F Features

* s Eight-pin package suitable for CATV applications Frequency range up to 1.0 GHz MQW F-P 1.3 µm laser with single-mode ﬁber pigtail Wide operating temperature range:

* 40 °C to +85 °C No TEC required High output power: typically 1.0 mW power coupled into single-mode ﬁber Hermetically sealed
