A37 Datasheet - Tyco Electronics

A37 10 TO 2000 MHz CASCADABLE AMPLIFIER

A37/SMA37 10 TO 2000 MHz CASCADABLE AMPLIFIER HIGH OUTPUT LEVEL: +15 dBm (TYP.) HIGH THIRD ORDER I.P.: +28 dBm (TYP.) WIDE POWER SUPPLY RANGE: +5 TO +15 VOLTS Specifications (Rev. Date: 11/00) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Typical Performance @ 25°C Guar.

A37_TycoElectronics.pdf

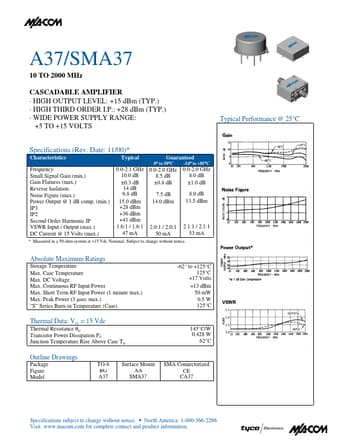

Preview of A37 PDF

Datasheet Details

Part number:

A37

Manufacturer:

Tyco Electronics

File Size:

105.60 KB

Description:

10 to 2000 mhz cascadable amplifier.
