A371-20AS Datasheet - Agere Systems

A371-20AS A371-Type Analog Uncooled Isolated DFB FastLight Laser Module

The A371-Type Uncooled Isolated Laser Module consists of a laser diode coupled to a single-mode fiber pigtail. The device is available in a standard, 8-pin configuration (see Figure 1 and/or Table 1) and is ideal for CATV applications. The module includes a narrow linewidth (<1 nm), DFBMQW, single-mod.
Data Sheet January 1999 A371-Type Analog Uncooled Isolated DFB FastLight ™ Laser Module s s s No thermoelectric cooler required Single- and double-isolated versions available High output power: typically 2.0 mW peak power coupled into single-mode fiber Hermetically sealed active components Internal back-facet monitor Qualification program: Bellcore TA-983 s s s Applications s s s s s Video and data applications Downstream telephony and data Return path systems Mixed analog and digital modulat.

A371-20AS Features

* s s s Eight-pin package suitable for CATV applications Narrow linewidth, distributed-feedback, multiquantum-well (DFB-MQW)1.3 µm laser with single-mode fiber pigtail Wide operating temperature range:

* 40 °C to +85 °C Frequency range up to 1.0 GHz s s s s A371-Type Analog Uncooled Isolate

A371-20AS Datasheet (168.71 KB)

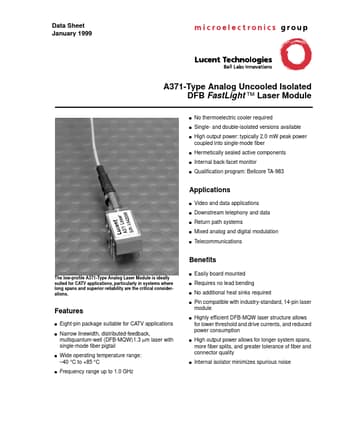

Preview of A371-20AS PDF
A371-20AS Datasheet Preview Page 2 A371-20AS Datasheet Preview Page 3

Datasheet Details

Part number:

A371-20AS

Manufacturer:

Agere Systems

File Size:

168.71 KB

Description:

A371-type analog uncooled isolated dfb fastlight laser module.
