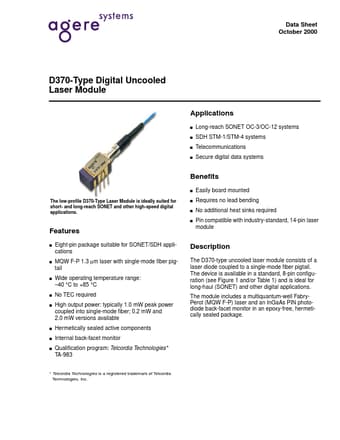

D370-20N D370-Type Digital Uncooled Laser Module

The D370-type uncooled laser module consists of a laser diode coupled to a single-mode ﬁber pigtail. The device is available in a standard, 8-pin conﬁguration (see Figure 1 and/or Table 1) and is ideal for long-haul (SONET) and other digital applications. The module includes a multiquantum-well Fabr.

D370-20N Features

* s Eight-pin package suitable for SONET/SDH applications MQW F-P 1.3 µm laser with single-mode ﬁber pigtail Wide operating temperature range:

* 40 °C to +85 °C No TEC required High output power: typically 1.0 mW peak power coupled into single-mode ﬁber; 0.2 mW and 2.0 mW versions available He
