DP2V90DX

(DP2Lxx) DP2 Data Pump Chip Sets

DP2V90DX Features

* Q Introduction The new DP2 family of devices is designed to serve embedded applications such as FAX machines and set-top boxes in which a separate modem microcontroller is not required, e.g., where a suitable system controller is already available to perform protocol processing. The DP2 family incl

DP2V90DX General Description

The Agere Systems DP2 chip set is a two-chip solution consisting of an Agere Systems DP2xxx data pump and a CSP1034S or CSP1035A. The DP2xxx devices support FAX modes at rates up to 33.6 kbits/s. The DP2V90DX device also supports V.90 and V.92 technology for data rates up to 56 kbits/s. A block diag.

DP2V90DX Datasheet (254.97 KB)

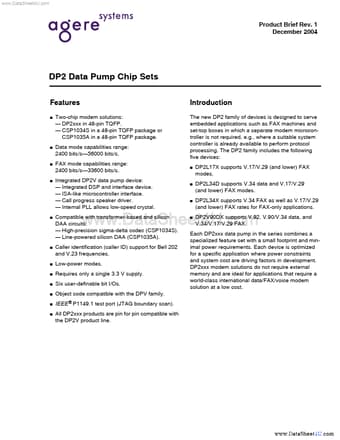

Preview of DP2V90DX PDF

Datasheet Details

Part number:

DP2V90DX

Manufacturer:

Agere Systems

File Size:

254.97 KB

Description:

(dp2lxx) dp2 data pump chip sets.
