DP200-4F Datasheet - SUNON

DP200-4F Skeleton AC Fan

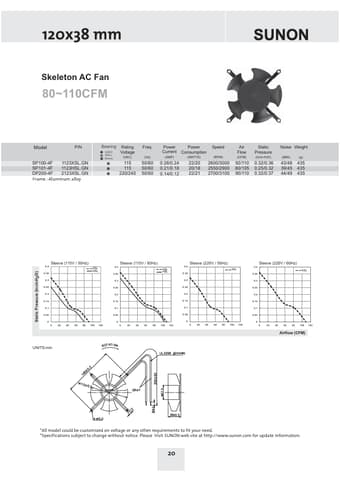

120x38 mm Skeleton AC Fan 80~110CFM Model P/N SP100-4F 1123XSL.GN SP101-4F 1123HSL.GN DP200-4F 2123XSL.GN Frame : Aluminum alloy Bearing Rating VAPO BALL Sleeve Voltage (VAC) 115 115 220/240 Freq. (Hz) 50/60 50/60 50/60 Power Power Speed Current Consumption (AMP) (WATTS) (RPM) 0.26/0.24 0.21/0.18 0.14/0.12 22/20 20/18 22/21 2600/3000 2550/2900 2700/3100 Air Flow (CFM) 92/110 80/105 90/110 Static Pressure (Inch-H2O) 0.32/0.36 0.25/0.32 0.32/0.37 Noise Weight (dBA) 43/48 39.

DP200-4F Datasheet (62.95 KB)

DP200-4F Datasheet Preview — Preview of DP200-4F PDF

Datasheet Details

Part number:

DP200-4F

Manufacturer:

SUNON

File Size:

62.95 KB

Description:

Skeleton ac fan.
