FW804 Datasheet - Agere Systems

FW804, Four-Cable Transceiver/Arbiter Device

Data Sheet, Rev.3 June 2001 FW804 PHY IEEE * 1394A Four-Cable Transceiver/Arbiter Device Distinguishing .

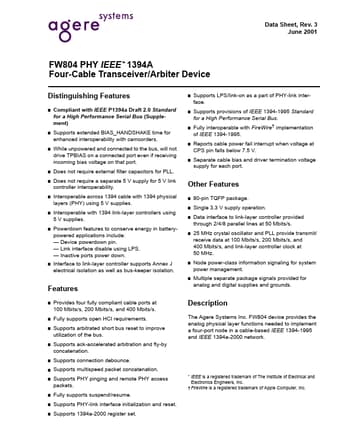

datasheet Preview Page 1 from Datasheet4u.com

FW804_AgereSystems.pdf

Preview of FW804 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

FW804

Manufacturer:

Agere Systems

File Size:

243.19 KB

Description:

Four-Cable Transceiver/Arbiter Device

Features

* I Compliant with IEEE P1394a Draft 2.0 Standard for a High Performance Serial Bus (Supplement) I Supports extended BIAS_HANDSHAKE time for enhanced interoperability with camcorders. I While unpowered and connected to the bus, will not drive TPBIAS on a connected port even if receiving incoming bias

Applications

* include:
* Device powerdown pin.
* Link interface disable using LPS.
* Inactive ports power down. I Interface to link-layer controller supports Annex J electrical isolation as well as bus-keep
