SMW010xx

Dual Output Series Surface Mount Power Modules

SMW010xx Features

* s e e h U 4 t m o .c Low profile: 10 mm x 30.2 mm x 49.5 mm (0.39 in. x 1.19 in. x 1.95 in.) Wide input voltage range: 18 Vdc to 36 Vdc and 36 Vdc to 75 Vdc Input-to-output isolation: 1500 V Operating case temperature range:

* 40 °C to +105 °C Overcurrent protection, unlimited duration Rem

SMW010xx General Description

The SMC/SMW Dual-Output Series Surface-Mount Power Modules are low-profile, dc-dc converters that operate over an input voltage range of 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc and provide a precisely regulated output. The output is isolated from the input, allowing versatile polarity configurations and .

SMW010xx Datasheet (355.55 KB)

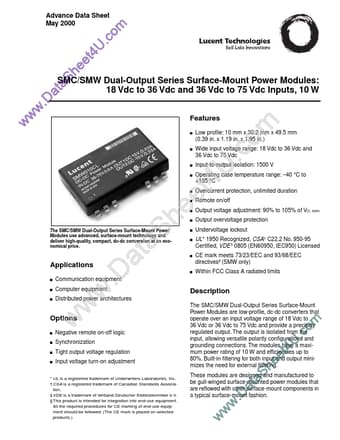

Preview of SMW010xx PDF

Datasheet Details

Part number:

SMW010xx

Manufacturer:

Agere Systems

File Size:

355.55 KB

Description:

Dual output series surface mount power modules.
Advance Data Sheet May 2000 w w .D w S SMC/SMW Dual-Output Series Surface-Mount Power Modules: a 18 Vdc to 36 Vdc and 36 Vdc to 75 Vdc Inputs, 10 .
