HSMS-2852 - Surface Mount Zero Bias Schottky Detector Diodes
Agilent Technologies
General Description
Agilent’s HSMS-285x family of zero bias Schottky detector diodes has been designed and optimized for use in small signal (Pin < -20 dBm) applications at frequencies below 1.5 GHz.
They are ideal for RF/ID and RF Tag applications where primary (DC bias) power is not available.
Full PDF Text Transcription for HSMS-2852 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
HSMS-2852. For precise diagrams, and layout, please refer to the original PDF.

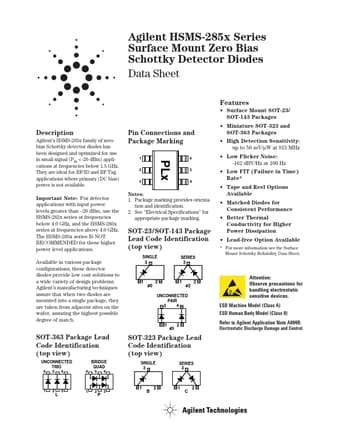

Agilent HSMS-285x Series Surface Mount Zero Bias Schottky Detector Diodes Data Sheet Features • Surface Mount SOT-23/ SOT-143 Packages Description Agilent’s HSMS-285x fam...
View more extracted text
ace Mount SOT-23/ SOT-143 Packages Description Agilent’s HSMS-285x family of zero bias Schottky detector diodes has been designed and optimized for use in small signal (Pin < -20 dBm) applications at frequencies below 1.5 GHz. They are ideal for RF/ID and RF Tag applications where primary (DC bias) power is not available. Important Note: For detector applications with input power levels greater than –20 dBm, use the HSMS-282x series at frequencies below 4.0 GHz, and the HSMS-286x series at frequencies above 4.0 GHz. The HSMS-285x series IS NOT RECOMMENDED for these higher power level applications.
