Part number: 5082-761X
Manufacturer: Agilent
File Size: 332.69KB
Download: 📄 Datasheet

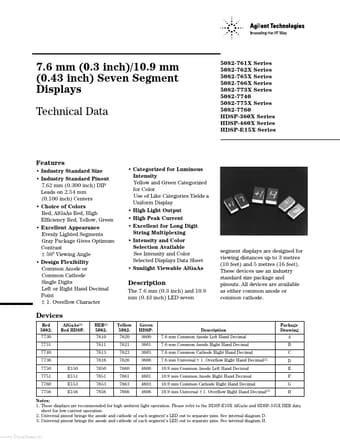

Description: 7.6mm (0.3 inch)/10.9mm (0.43 inch) Seven Segment Display
* Industry Standard Size
* Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers
* Choice of Colors Red, AlGaAs Red, High Ef.
Pin for pin equivalent displays are also available in a low current or high light
ambient design. The low current disp.
The 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED seven
segment displays are designed for viewing distances up to 3 metres (10 feet) and 5 metres (16 feet). These devices use an industry standard size package and pinouts. All devices are available a.
Image gallery
