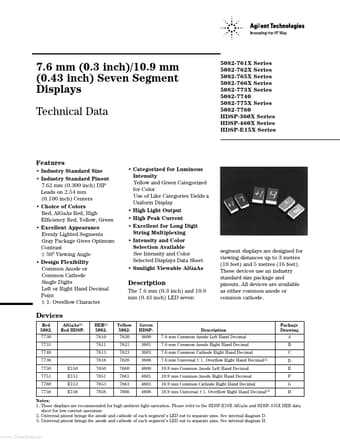

5082-762X Datasheet, Display, Agilent

📥 Download PDF (332.69 KB)

PDF File Details

Agilent manufacturer logo

Part number:

5082-762X

Manufacturer:

Agilent

File Size:

332.69 KB

Download:

📄 Datasheet

Description:

7.6mm (0.3 inch)/10.9mm (0.43 inch) seven segment display. The 7.6 mm (0.3 inch) and 10.9 mm (0.43 inch) LED seven segment displays are designed for viewing distances up to 3 metres (10 feet)

✔ 5082-762X Features

Industry Standard Size
Industry Standard Pinout 7.62 mm (0.300 inch) DIP Leads on 2.54 mm (0.100 inch) Centers
Choice of Colors Red, AlGaAs Red, High Efficiency Red

✔ 5082-762X Application

Pin for pin equivalent displays are also available in a low current or high light ambient design. The low
