HCPL-0708

High Speed CMOS Optocoupler

HCPL-0708 Features

* +5 V CMOS compatibility

* 15 ns typical pulse width distortion

* 30 ns max. pulse width distortion

* 40 ns max. propagation delay skew

* High speed: 15 MBd

* 60 ns max. propagation delay

* 10 kV/µs minimum common mode rejection

HCPL-0708 General Description

Available in SO-8 package, the HCPL-0708 optocoupler utilizes the latest CMOS IC technology to achieve outstanding performance with very low power consumption. Basic building blocks of the HCPL- Functional Diagram NC 1 ANODE 2 8 VDD 7 NC 0708 are a high speed LED and a CMOS detector IC. The dete.

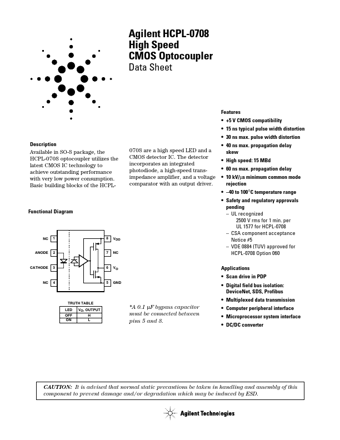

HCPL-0708 Datasheet (260.19 KB)
