HCPL-0710

Optocoupler

HCPL-0710 Features

* +5 V CMOS Compatibility

* 8 ns max. Pulse Width Distortion

* 20 ns max. Prop. Delay Skew

* High Speed: 12 Mbd

* 40 ns max. Prop. Delay

* 10 kV/µs Minimum Common Mode Rejection

* 0°C to 85°C Temp. Range

* Safety and Regulatory Approval

HCPL-0710 General Description

Available in the SO-8 package style, the HCPL-0710 optocoupler utilizes the latest CMOS IC technology to achieve outstanding performance with very low power consumption. The HCPL-0710 requires only two bypass capacitors for complete CMOS compatability. Basic building blocks of the HCPL-0710 are a C.

HCPL-0710 Datasheet (266.42 KB)

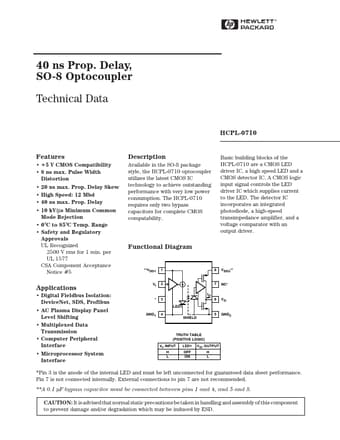

Preview of HCPL-0710 PDF

Datasheet Details

Part number:

HCPL-0710

Manufacturer:

HP

File Size:

266.42 KB

Description:

Optocoupler.
