HCPL-0531 - High Speed Optocouplers

This page provides the datasheet information for the HCPL-0531, a member of the HCPL-2530 High Speed Optocouplers family.

Description

These dual channel optocouplers contain a pair of light emitting diodes and integrated photodetectors with electrical insulation between input and output.

Features

  • 15 kV/µs Minimum Common Mode Transient Immunity at VCM = 1500 V (HCPL-4534/0534).
  • High Speed: 1 Mb/s.
  • TTL Compatible.
  • Available in 8 Pin DIP, SO-8, and 8 Pin DIP.
  • Gull Wing Surface Mount (Option 020) Packages.
  • High Density Packaging.
  • 3 MHz Bandwidth.
  • Open Collector Outputs.
  • Guaranteed Performance from 0°C to 70°C.
  • Safety Approval UL Recognized.
  • 2500 V rms for 1 minute (5000 V rms for 1 minute for.

📥 Download Datasheet

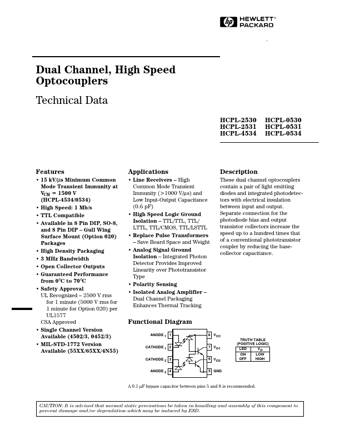

Datasheet preview – HCPL-0531

Datasheet Details

Part number HCPL-0531
Manufacturer HP
File Size 204.13 KB
Description High Speed Optocouplers
Datasheet download datasheet HCPL-0531 Datasheet
Additional preview pages of the HCPL-0531 datasheet.

📁 Similar Datasheet

  • HCPL-0531 - High Speed Optocouplers (Avago)
  • HCPL-0530 - High Speed Optocouplers (Avago)
  • HCPL-0534 - High Speed Optocouplers (Avago)
  • HCPL-0534 - High Speed Optocouplers (Avago)
  • HCPL-0500 - SINGLE CHANNEL HIGH SPEED TRANSISTOR OPTOCOUPLERS (Fairchild Semiconductor)
  • HCPL-0500 - High-Speed Optocouplers (Broadcom)
  • HCPL-0500 - (HCPL-xxxx) Single Channel / High Speed Optocouplers (Hewlett-Packard)
  • HCPL-0500 - High Speed Optocouplers (AVAGO)
  • HCPL-0501 - SINGLE CHANNEL HIGH SPEED TRANSISTOR OPTOCOUPLERS (Fairchild Semiconductor)
  • HCPL-0501 - High-Speed Optocouplers (Broadcom)
Other Datasheets by HP
  • HCPL-0530 - High Speed Optocouplers
  • HCPL-0534 - High Speed Optocouplers
  • HCPL-0454 - High Speed Optocouplers
  • HCPL-0466 - Intelligent Power Module and Gate Drive Interface Optocouplers
  • HCPL-0600 - High Speed TTL Compatible Optocouplers
  • HCPL-0601 - High Speed TTL Compatible Optocouplers
  • HCPL-0611 - High Speed TTL Compatible Optocouplers
  • HCPL-061A - Optocouplers

Full PDF Text Transcription

Click to expand full text
Dual Channel, High Speed Optocouplers Technical Data HCPL-2530 HCPL-0530 HCPL-2531 HCPL-0531 HCPL-4534 HCPL-0534 Features • 15 kV/µs Minimum Common Mode Transient Immunity at VCM = 1500 V (HCPL-4534/0534) • High Speed: 1 Mb/s • TTL Compatible • Available in 8 Pin DIP, SO-8, and 8 Pin DIP – Gull Wing Surface Mount (Option 020) Packages • High Density Packaging • 3 MHz Bandwidth • Open Collector Outputs • Guaranteed Performance from 0°C to 70°C • Safety Approval UL Recognized – 2500 V rms for 1 minute (5000 V rms for 1 minute for Option 020) per UL1577 CSA Approved • Single Channel Version Available (4502/3, 0452/3) • MIL-STD-1772 Version Available (55XX/65XX/4N55) Applications • Line Receivers – High Common Mode Transient Immunity (>1000 V/µs) and Low Input-Output Capacitance (0.
