HCPL-0708

High Speed CMOS Optocoupler

HCPL-0708 Features

* +5 V CMOS compatibility

* 15 ns typical pulse width distortion

* 30 ns max. pulse width distortion

* 40 ns max. propagation delay skew

* High speed: 15 MBd

* 60 ns max. propagation delay

* 10 kV/µs minimum common mode rejection

HCPL-0708 General Description

Available in SO-8 package, the HCPL-0708 optocoupler utilizes the latest CMOS IC technology to achieve outstanding performance with very low power consumption. Basic building blocks of the HCPL-0708 are a high speed LED and a CMOS detector IC. The detector incorporates an integrated photodiode, a hi.

HCPL-0708 Datasheet (145.45 KB)

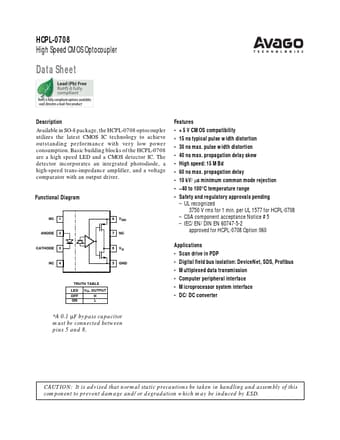

Preview of HCPL-0708 PDF

Datasheet Details

Part number:

HCPL-0708

Manufacturer:

Avago

File Size:

145.45 KB

Description:

High speed cmos optocoupler.
