HCPL-270L - Low Input Current High Gain LVTTL/LVCMOS Compatible 3.3 V Optocouplers

HCPL-270L Description

Agilent HCPL-270L/ 070L/273L/073L Low Input Current High Gain LVTTL/LVCMOS Compatible 3.3 V Optocouplers Data Sheet .
These high gain series couplers use a Light Emitting Diode and an integrated high gain photodetector to provide extremely high current transfer ratio.

HCPL-270L Applications

* A 400% minimum current transfer ratio is guaranteed over 0 to +70˚C operating range for only 0.5 mA of LED current. Functional Diagram HCPL-270L/070L NC 1 ANODE 2 8 VCC 7 VB CATHODE 3 NC 4 6 VO 5 GND HCPL-273L/073L ANODE 1 1 CATHODE 1 2 CATHODE 2 3 ANODE 2 4 8 VCC 7 VO1 6 VO2 5 GND Featur

📥 Download Datasheet

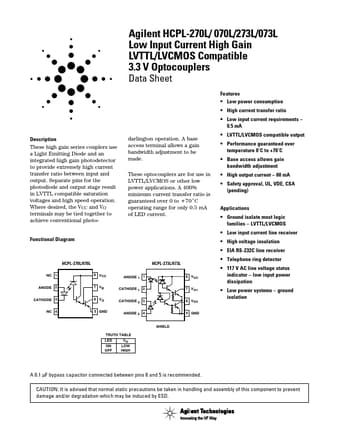

Preview of HCPL-270L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HCPL-270L
Manufacturer
Agilent
File Size
180.93 KB
Datasheet
HCPL-270L-Agilent.pdf
Description
Low Input Current High Gain LVTTL/LVCMOS Compatible 3.3 V Optocouplers
