HCPL-2219 Datasheet, Optocouplers, Avago

HCPL-2219 Features

• Optocouplers
• 2.5 kV/µs minimum Common Mode Rejection (CMR) at VCM = 400 V (HCPL-2219)
• Compatible with LSTTL, TTL, and CMOS logic
• Wide VCC range (4.5 to 20 V)

PDF File Details

Part number:

HCPL-2219

Manufacturer:

Avago

File Size:

189.46kb

Download:

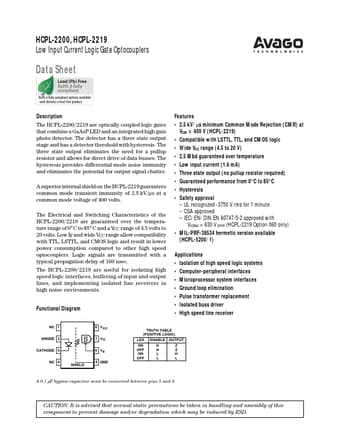

📄 Datasheet

Description:

Low input current logic gate optocouplers. The HCPL-2200/2219 are optically coupled logic gates that combine a GaAsP LED and an integrated high gain photo detector. The detecto

HCPL-2219 Application

• Applications
• Isolation of high speed logic systems
• Computer-peripheral interfaces
• Microprocessor system interfaces
