HCPL-3120 - Agilent 2.5 Amp Output Current IGBT Gate Drive Optocoupler

Agilent

Key Features

2.5 A maximum peak output current.
2.0 A minimum peak output current.
15 kV/µs minimum Common Mode Rejection (CMR) at VCM = 1500 V.
0.5 V maximum low level output voltage (VOL) Eliminates need for negative gate drive.
ICC = 5 mA maximum supply current.
Under Voltage Lock-Out protection (UVLO) with hysteresis.
Wide operating VCC range.

HCPL-3120 agilent 2.5 amp output current igbt gate drive optocoupler by Agilent - Datasheet Preview

Datasheet Details

Part number	HCPL-3120
Manufacturer	Agilent
File Size	494.82 KB
Description	Agilent 2.5 Amp Output Current IGBT Gate Drive Optocoupler
Datasheet	HCPL-3120 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
HCPL-3120	2.5 Amp Output Current IGBT Gate Drive Optocoupler	Avago
HCPL-3100	Power MOSFET/IGBT Gate Drive Optocouplers	HP
HCPL-3101	Power MOSFET/IGBT Gate Drive Optocouplers	HP
HCPL-3140	0.4 Amp Output Current IGBT Gate Drive Optocoupler	Avago
HCPL-314J	0.4 Amp Output Current IGBT Gate Drive Optocoupler	AVAGO

Other Datasheets by Agilent

Part Number	Description
HCPL-3100	Power MOSFET/IGBT Gate Drive Optocouplers
HCPL-3140	0.4 Amp Output Current IGBT Gate Drive Optocoupler
HCPL-315J	0.5 Amp Output Current IGBT Gate Drive Optocoupler
HCPL-316J	2.0 Amp Gate Drive Optocoupler
HCPL-3180	High Speed IGBT/MOSFET Gate Drive Optocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

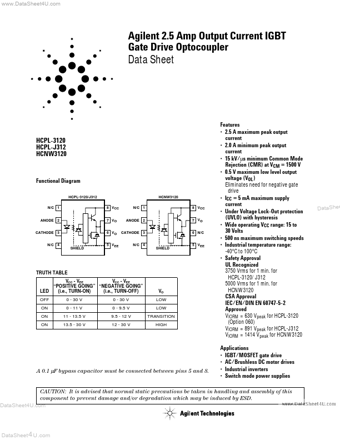

www.DataSheet4U.com Agilent 2.5 Amp Output Current IGBT Gate Drive Optocoupler Data Sheet HCPL-3120 HCPL-J312 HCNW3120 Functional Diagram N/C 1 ANODE 2 CATHODE 3 N/C 4 HCPL-3120/J312 SHIELD HCNW3120 8 VCC N/C 1 8 VCC 7 VO ANODE 2 DataSheet4U.com7 VO 6 VO CATHODE 3 6 N/C 5 VEE N/C 4 SHIELD 5 VEE TRUTH TABLE VCC - VEE VCC - VEE “POSITIVE GOING” “NEGATIVE GOING” LED (i.e., TURN-ON) (i.e., TURN-OFF) OFF 0 - 30 V 0 - 30 V VO LOW ON 0 - 11 V 0 - 9.5 V LOW ON 11 - 13.5 V 9.5 - 12 V TRANSITION ON 13.5 - 30 V 12 - 30 V HIGH A 0.1 µF bypass capacitor must be connected between pins 5 and 8. Features • 2.5 A maximum peak output current • 2.0 A minimum peak output current • 15 kV/µs minimum Common Mode Rejection (CMR) at VCM = 1500 V • 0.
