HDSP-0760 - Hexadecimal and Numeric Displays

Product Overview

Agilent

📥 Download Datasheet

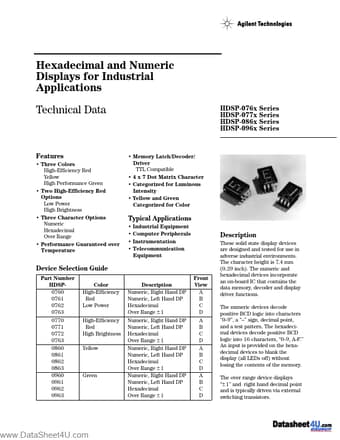

HDSP-0760 Hexadecimal and Numeric Displays by Agilent - Datasheet Preview — Datasheet preview – HDSP-0760

Datasheet Details

Part number	HDSP-0760
Manufacturer	Agilent
File Size	181.74 KB
Description	Hexadecimal and Numeric Displays
Datasheet	HDSP-0760 Datasheet
Note	This datasheet PDF includes multiple part numbers: HDSP-0760, HDSP-076x_Hewlett. Please refer to the document for exact specifications by model.
Additional preview pages of the HDSP-0760 datasheet.

Product details

Description

Numeric, Right Hand DP Numeric, Left Hand DP Hexadecimal Over

Features

Three Colors High-Efficiency Red Yellow High Performance Green.
Two High-Efficiency Red Options Low Power High Brightness.
Three Character Options Numeric Hexadecimal Over Range.
Performance Guaranteed over Temperature.
Memory Latch/Decoder/ Driver TTL Compatible.
4 x 7 Dot Matrix Character.
Categorized for Luminous Intensity.
Yellow and Green Categorized for Color Typical.
