HDSP-0791 - Glass/Ceramic Numeric and Hexadecimal Displays

Product Overview

Agilent

Datasheet Details

Part number	HDSP-0791
Manufacturer	Agilent
File Size	145.22 KB
Description	Glass/Ceramic Numeric and Hexadecimal Displays
Datasheet	HDSP-0791 Datasheet
Note	This datasheet PDF includes multiple part numbers: HDSP-0791, HDSP-078x. Please refer to the document for exact specifications by model.

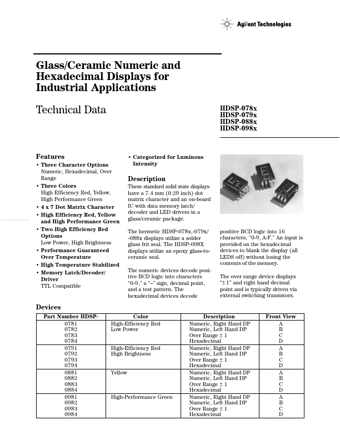

Additional preview pages of the HDSP-0791 datasheet.

Product details

Description

These standard solid state displays have a 7.4 mm (0.29 inch) dot matrix character and an on-board IC with data memory latch/ decoder and LED drivers in a glass/ceramic package.

Features

Three Character Options Numeric, Hexadecimal, Over Range.
Three Colors High Efficiency Red, Yellow, High Performance Green.
4 x 7 Dot Matrix Character.
High Efficiency Red, Yellow and High Performance Green.
Two High Efficiency Red Options Low Power, High Brightness.
Performance Guaranteed Over Temperature.
High Temperature Stabilized.
Memory Latch/Decoder/ Driver TTL Compatible.
Categorized for Luminous Intensity.
