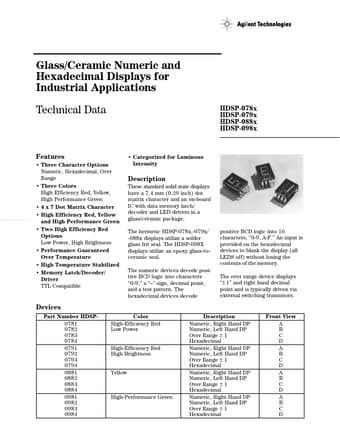

HDSP-0792 Glass/Ceramic Numeric and Hexadecimal Displays

These standard solid state displays have a 7.4 mm (0.29 inch) dot matrix character and an on-board IC with data memory latch/ decoder and LED drivers in a glass/ceramic package. The hermetic HDSP-078x,-079x/ -088x displays utilize a solder glass frit seal. The HDSP-098X displays utilize an epoxy gla.

HDSP-0792 Features

* Three Character Options Numeric, Hexadecimal, Over Range

* Three Colors High Efficiency Red, Yellow, High Performance Green

* 4 x 7 Dot Matrix Character

* High Efficiency Red, Yellow and High Performance Green

* Two High Efficiency Red Options Low Power, Hig
