HDSP515L, HDSP-315x - (HDSP-x1xx) Slim Font Seven Segment Displays

HDSP515L Description

10 mm and 13 mm Slim Font Seven Segment Displays Technical Data HDSP-315x Series HDSP-316x Series HDSP-515x Series HDSP-516x Series .
The HDSP-31xx-51xx Series of displays incorporates a new slim font character design.

HDSP515L Features

* Excellent Appearance
* Slim Font Design
* Mitered Corners, Evenly Illuminated Segments
* Gray Face for Optimum On/Off Contrast
* Choice of Colors: DH AlGaAs Red, High Efficiency Red (HER), Yellow, and Green
* Low Current Available, AlGaAs Red and HER

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HDSP515L, HDSP-315x. Please refer to the document for exact specifications by model.

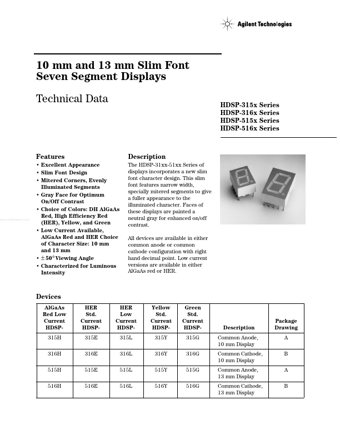

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HDSP515L, HDSP-315x
Manufacturer
Agilent
File Size
113.79 KB
Datasheet
HDSP-315x_Agilent.pdf
Description
(HDSP-x1xx) Slim Font Seven Segment Displays
Note
This datasheet PDF includes multiple part numbers: HDSP515L, HDSP-315x.
Please refer to the document for exact specifications by model.
