HSMP-48xx, HSMP-3800 Datasheet - Agilent

HSMP-48xx (HSMP-38xx / HSMP-48xx) Surface Mount PIN Diodes

Applications The HSMP-380X and HSMP-381X series are specifically designed for low distortion attenuator applications. The HSMP-382X series is optimized for switching applications where ultra-low resistance is required. The HSMP-3880 switching diode is an ultra low distortion device optimized for hig.

HSMP-48xx Features

* Diodes Optimized for: Low Current Switching Low Distortion Attenuating Ultra-Low Distortion Switching Microwave Frequency Operation

* Surface Mount SOT-23 and SOT-143 Packages Single and Dual Versions Tape and Reel Options Available

* Low Failure in Time (FIT) Rate[1] Note:

HSMP-3800_Agilent.pdf

This datasheet PDF includes multiple part numbers: HSMP-48xx, HSMP-3800. Please refer to the document for exact specifications by model.

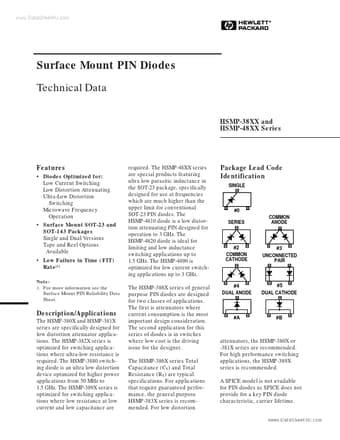

HSMP-48xx Datasheet Preview Page 2 HSMP-48xx Datasheet Preview Page 3
