HSMP-489x, HSMP-389x - (HSMP-389x / HSMP-489x) Pin Switch Diode

HSMP-489x Description

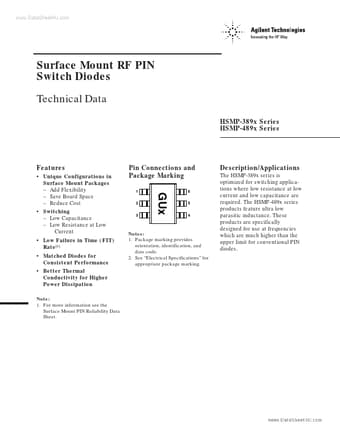

www.DataSheet4U.com Surface Mount RF PIN Switch Diodes Technical Data HSMP-389x Series HSMP-489x Series .
Applications The HSMP-389x series is optimized for switching applications where low resistance at low current and low capacitance are required.

HSMP-489x Features

* Unique Configurations in Surface Mount Packages
* Add Flexibility
* Save Board Space
* Reduce Cost
* Switching
* Low Capacitance
* Low Resistance at Low Current
* Low Failure in Time (FIT) Rate[1]
* Matched Diodes for Consiste

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSMP-489x, HSMP-389x. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSMP-489x, HSMP-389x
Manufacturer
Agilent Technologies
File Size
145.79 KB
Datasheet
HSMP-389x_AgilentTechnologies.pdf
Description
(HSMP-389x / HSMP-489x) Pin Switch Diode
Note
This datasheet PDF includes multiple part numbers: HSMP-489x, HSMP-389x.
Please refer to the document for exact specifications by model.
