A1117A BIPOLAR LDO REGULATOR

📥 Download Datasheet  Datasheet Preview Page 1

Description

AiT Semiconductor Inc.A1117A www.ait-ic.com BIPOLAR LDO REGULATOR 1A CURRENT LIMIT AND THERMAL PROTECTION .
FEATURES A1117A is a series of low dropout three-terminal. regulators with a typical dropout of 1. current.

📥 Download Datasheet

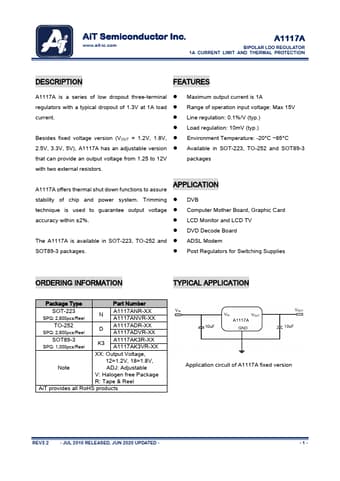

Preview of A1117A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
A1117A
Manufacturer
AiT Semiconductor
File Size
463.49 KB
Datasheet
A1117A-AiTSemiconductor.pdf
Description
BIPOLAR LDO REGULATOR

Features

* A1117A is a series of low dropout three-terminal
* regulators with a typical dropout of 1.3V at 1A load
* current.
* Besides fixed voltage version (VOUT = 1.2V, 1.8V,
* 2.5V, 3.3V, 5V), A1117A has an adjustable version
* that can provide an output voltage from 1.25
