A1116 - BIPOLAR LDO REGULATOR

Product Overview

AiT Semiconductor

Part number	A1116
Manufacturer	AiT Semiconductor
File Size	286.19 KB
Description	BIPOLAR LDO REGULATOR
Datasheet	A1116 Datasheet

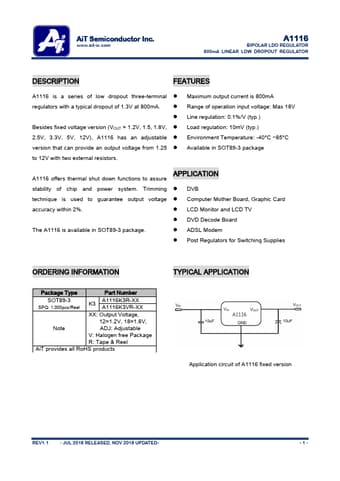

Additional preview pages of the A1116 datasheet.

A1116 is a series of low dropout three-terminal.
regulators with a typical dropout of 1.3V at 800mA.
Besides fixed voltage version (VOUT = 1.2V, 1.5, 1.8V,.
2.5V, 3.3V, 5V, 12V), A1116 has an adjustable.
version that can provide an output voltage from 1.25.
to 12V with two external resistors. Maximum output current is 800mA Range of operation input voltage: Max 18V Line regulation: 0.1%/V (typ. ) Load regulation: 10mV (typ. ) Environment Temperature: -40°C ~85°C A.
