A1117 1A LOW-DROPOUT POSITIVE FIXED AND ADJUSTABLE VOLTAGE REGULATOR

A1117 Description

1A LOW-DROPOUT POSITIVE FIXED AND ADJUSTABLE VOLTAGE REGULATOR A1117 .
The A1117 is designed to provide 1A for requiring high efficiency applications.

A1117 Features

* Output Current of 1A Maximum Three-Terminal Adjustable or Fixed Outputs Maximum Input Voltage: 18V Fast Transient Response Current Limit, Safe Operating and Thermal Shutdown Protection Line Regulation: 0.2% Load Regulation: 0.4% Environment Temperature: -50oC~+140oC Available in SOT-223 and TO-252 P

A1117 Applications

* The A1117 series of positive fixed voltage and adjustable version, which can provide an output voltage from 1.25V to 13.8V with only two external resistors. The A1117 offers current limiting and thermal protection to assure the stability of chip and power system. And the on chip trimming technique

📥 Download Datasheet

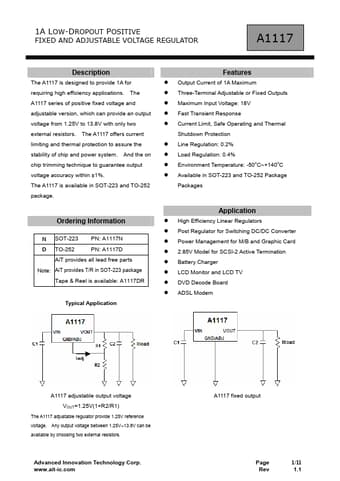

A1117 Datasheet Preview — Preview of A1117 PDF

Datasheet Details

Part number: A1117
Manufacturer: Advanced Innovation Technology
File Size: 374.03 KB
Datasheet: A1117-AdvancedInnovationTechnology.pdf
Description: 1A LOW-DROPOUT POSITIVE FIXED AND ADJUSTABLE VOLTAGE REGULATOR
