A4102 Datasheet - AiT Semiconductor

A4102 - LDO MODE OVP WITH INTEGRATED P-MOSFET

The A4102 is Li+ charger IC with integrated P-MOSFET.

The device is fabricated with advanced CMOS technology to achieve maintaining low static power dissipation over a very broad VCC operating range.

The A4102 integrates a P-MOSFET and Schottky diode which is normally a discrete device employed for

A4102 Features

* A Built-In P-MOSFET

* LDO mode makes CHRIN voltage stable around 5.5V

* Range of operation input voltage: Max 15V

* Charging current up to 1A

* Environment Temperature: -20℃ ~ 85℃

* Available in DFN8(2x2) Package APPLICATION

* Cell phone and other portable device The A

A4102-AiTSemiconductor.pdf

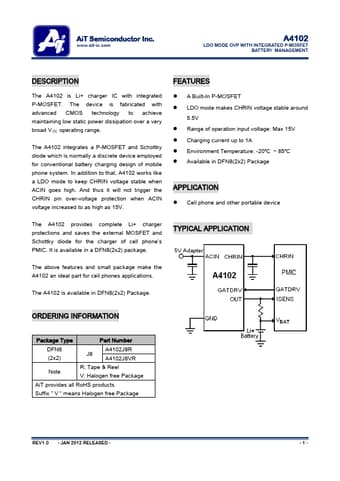

Preview of A4102 PDF
A4102 Datasheet Preview Page 2 A4102 Datasheet Preview Page 3

Datasheet Details

Part number:

A4102

Manufacturer:

AiT Semiconductor

File Size:

402.07 KB

Description:

Ldo mode ovp with integrated p-mosfet.
