A6201

250mA LOW CONSUMPTION LINEAR REGULATOR

A6201 Features

* Low Power Consumption: 2.0uA(Typ.)

* Maximum Output Current: 250mA

* Small Dropout Voltage 210mV@100mA (VOUT=3.3V) 420mV@200mA (VOUT=3.3V)

* Input Voltage Range: 2V~16V

* Output Voltage Range: 1.1V~5.0V (customized on command in 0.1V steps)

* Highly Accurate: ±2%(±1% custom

A6201 General Description

A6201 series is a group of positive voltage output, low power consumption, low dropout voltage, three terminal regulator. It can provide 200mA output current when input / output voltage differential drops to 420mV (VOUT= 3.3V), And it also provides foldback short-circuit protection and output curren.

A6201 Datasheet (508.81 KB)

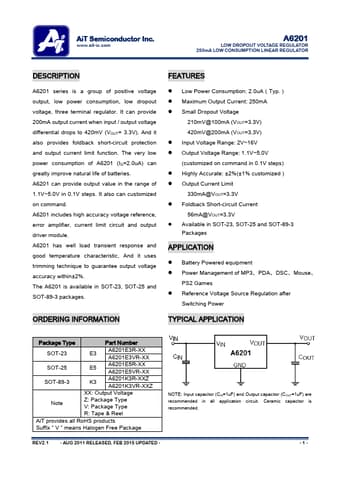

Preview of A6201 PDF

Datasheet Details

Part number:

A6201

Manufacturer:

AiT Semiconductor

File Size:

508.81 KB

Description:

250ma low consumption linear regulator.
