A6250

LOW DROPOUT VOLTAGE REGULATOR

A6250 Features

* Low Iq: 3.0uA (typ.)

* Max Output current: 250mA

* Min in/out voltage difference 170mV@100mA (VOUT=3.0V) 400mV@250mA (VOUT=3.0V)

* Input Range: 1.5V~10V

* Output Range: 1.2V~6V (0.1V increasing)

* Output voltage accuracy within ±2%

* Current Limit Protection

* Avail

A6250 General Description

The A6250 is a series of low dropout regulators to provide fixed positive output from 1.2V~6.0V (0.1V increasing). The A6250 offers low power consumption, low quiescent current (Iq=3.0uA) to have longer battery life. The A6250 includes high accuracy voltage reference, error amplifier, current limi.

A6250 Datasheet (954.71 KB)

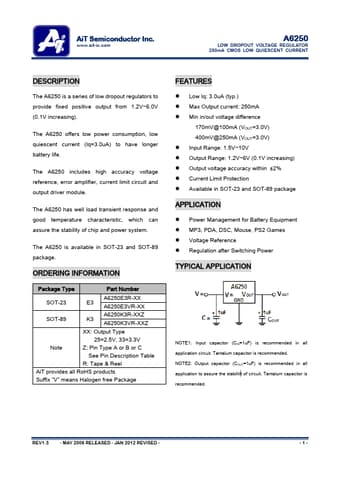

Preview of A6250 PDF

Datasheet Details

Part number:

A6250

Manufacturer:

AiT Semiconductor

File Size:

954.71 KB

Description:

Low dropout voltage regulator.
