A6252M - STR-A6252M

Sanken Electric

📥 Download Datasheet

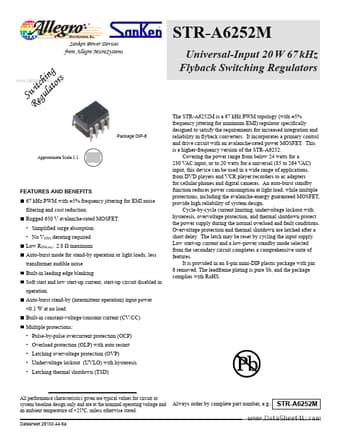

A6252M Datasheet Preview — Preview of A6252M PDF

Datasheet Details

Part number: A6252M
Manufacturer: Sanken ↗ Electric
File Size: 938.37 KB
Datasheet: A6252M_SankenElectric.pdf
Description: STR-A6252M

A6252M Product details

Description

Source/OCP terminal FM/Soft start terminal Ground terminal FB/CC/OLP terminal Functions MOSFET Source/Overcurrent protection Capacitor connection terminal for frequency jitter and soft start.Ground Input of constant voltage control signal / constant current operation control signal / over load protection signal Input of power supply for control circuit MOSFET drain / Input of startup current 5 7 8 VCC D Power supply terminal Drain terminals 115 Northeast Cutoff, Box 15036 Worcester, Massac

Features

67 kHz PWM with ±5% frequency jittering for EMI noise filtering and cost reduction Rugged 650 V avalanche-rated MOSFET:.
Simplified surge absorption.
No VDSS derating required Low RDS(on) : 2.8 Ω maximum Auto-burst mode for stand-by operation or light loads; less transformer audible noise Built-in leading edge blanking Soft start and low start-up current; start-up circuit disabled in operation Auto-burst stand-by (intermittent operation) input power.
