A6259

8-Bit Addressable DMOS Power Driver

A6259 Features

* s 50 V Minimum Output Clamp Voltage s 250 mA Output Current (all outputs simultaneously) s 1.3 Ω Typical rDS(on) s Low Power Consumption s Replacements for TPIC6259N and TPIC6259DW Always order by complete part number: Part Number A6259KA A6259KLW Package 20-pin DIP 20-lead SOIC RθJA 55°C/W 70°C

A6259 Datasheet (170.33 KB)

Preview of A6259 PDF

Datasheet Details

Part number:

A6259

Manufacturer:

Allegro

File Size:

170.33 KB

Description:

8-bit addressable dmos power driver.

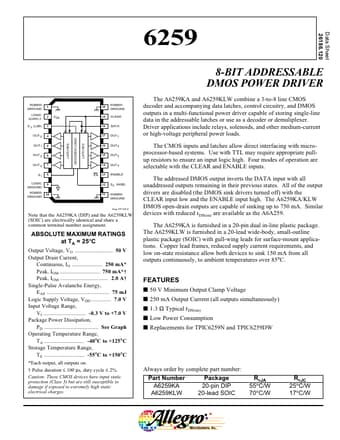

Data Sheet 26186.120 6259 8-BIT ADDRESSABLE DMOS POWER DRIVER POWER GROUND 1 LOGIC SUPPLY 2 VDD S 0 (LSB) 3 OUT 0 4 OUT1 5 OUT 2 6 OUT 3 7.
