A7110, 1.5MHz 1A SYNCHRONOUS STEP-DOWN CURRENT MODE HIGH EFFICIENCY DC-DC CONVERTER

AiT Semiconductor Inc.www.ait-ic.com A7110 DC-DC CONVERTER/ BUCK (STEP-DOWN) 1.0A 1.5MHz SYNCHRONOUS BUCK CONVERTER .
FEATURES The A7110 is a high-efficiency, DC-to-DC step-down. High Efficiency: Up to 96% switching regulators, capable of delivering up to 1.

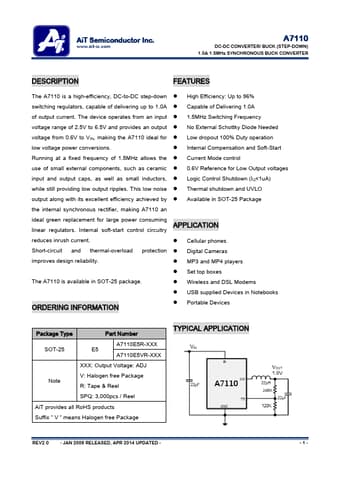

datasheet Preview Page 1 from Datasheet4u.com

A7110-AiTSemiconductor.pdf

A7110 Datasheet Preview — Preview of A7110 PDF

Datasheet Details

Part number:

A7110

Manufacturer:

AiT Semiconductor

File Size:

532.83 KB

Description:

1.5MHz 1A SYNCHRONOUS STEP-DOWN CURRENT MODE HIGH EFFICIENCY DC-DC CONVERTER

Features

* The A7110 is a high-efficiency, DC-to-DC step-down
* High Efficiency: Up to 96% switching regulators, capable of delivering up to 1.0A
* Capable of Delivering 1.0A of output current. The device operates from an input
* 1.5MHz Switching Frequency voltage range of 2.5V to 6.5V and prov

Applications

* An internal synchronous rectifier improves efficiency and eliminates the typical Schottky free-wheeling diode. Using the on resistance of the internal high-side MOSFET to sense switching currents eliminates current-sense resistors, further improving efficiency and cost. Loop Operation A7110 uses a
