A7116 - DC-DC CONVERTER/ BUCK

Product Overview

AiT Semiconductor

📥 Download Datasheet

A7116 DC-DC CONVERTER/ BUCK by AiT Semiconductor - Datasheet Preview — Datasheet preview – A7116

Datasheet Details

Part number	A7116
Manufacturer	AiT Semiconductor
File Size	0.96 MB
Description	DC-DC CONVERTER/ BUCK
Datasheet	A7116 Datasheet

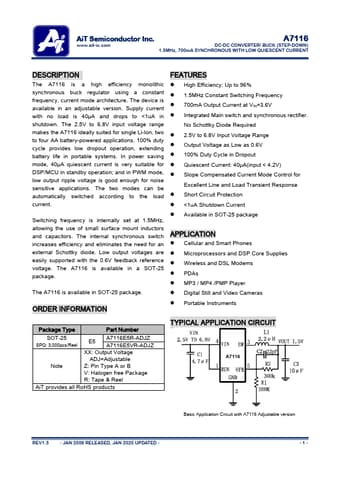

Additional preview pages of the A7116 datasheet.

Product details

Description

The A7116 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture.

Features

High Efficiency: Up to 96%.
1.5MHz Constant Switching Frequency.
700mA Output Current at VIN=3.6V.
Integrated Main switch and synchronous rectifier. No Schottky Diode Required.
2.5V to 6.8V Input Voltage Range.
Output Voltage as Low as 0.6V.
100% Duty Cycle in Dropout.
Quiescent Current: 40μA(input < 4.2V).
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
Short Circuit Protection.
