A8290

LED DRIVER

A8290 Features

* Wide operation range: from 5V to 90V(VA-B)

* ILED can be programmed from 10mA to 20mA via changing RSENSE

* Power dissipation can be adjusted

* Easy to use, only 3 pins and very little external components are needed

* Can be paralleled for higher current

* Temperature compe

A8290 General Description

The LEADCHIP A8290 is a high-voltage adjustable current source with accurate temperature compensation. The device is designed to provide a constant current source determined by an external sense resistor R .SENSE The current is adjustable from 10mA to 20mA with less than 10% error while input change.

A8290 Datasheet (352.10 KB)

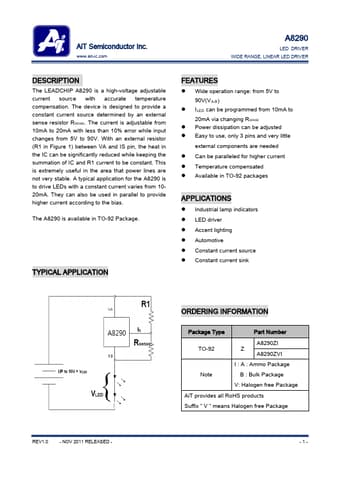

Preview of A8290 PDF

Datasheet Details

Part number:

A8290

Manufacturer:

AiT Semiconductor

File Size:

352.10 KB

Description:

Led driver.
