A82 20 TO 250 MHz CASCADABLE AMPLIFIER

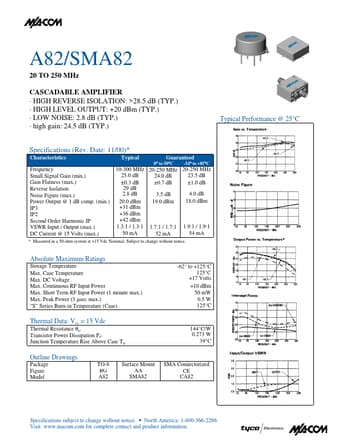

A82/SMA82 20 TO 250 MHz CASCADABLE AMPLIFIER HIGH REVERSE ISOLATION: >28.5 dB (TYP.) HIGH LEVEL OUTPUT: +20 dBm (TYP.) LOW NOISE: 2.8 dB (TYP.) high gain: 24.5 dB (TYP.) Specifications (Rev. Date: 11/00) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Typical Perform.

A82_TycoElectronics.pdf

A82 Datasheet Preview — Preview of A82 PDF

Datasheet Details

Part number:

A82

Manufacturer:

Tyco Electronics

File Size:

109.55 KB

Description:

20 to 250 mhz cascadable amplifier.
