* TO-92 G H High Breakdown Voltage Low Transition Frequency CLASSIFICATION OF hFE Product-Rank 2SA821-N Range 56~120 2SA821-P 82~180 2SA821-Q 82~180 K J A B D Emitter Collector
* Base Millimeter Min. Max. 4.40 4.70 4.30 4.70 12.70 3.30 3.81 0.36 0.56 0.36 0.51 1.27 TYP. 1.10 2.42
A821
Secos
94.67 KB
Pnp plastic encapsulated transistor.

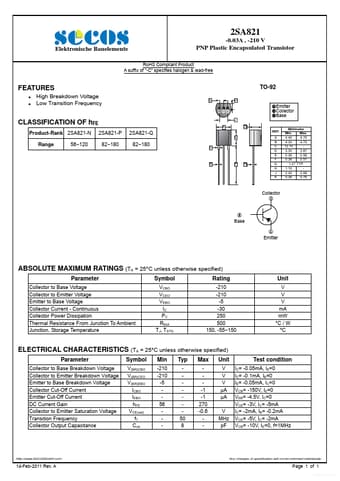

2SA821
Elektronische Bauelemente -0.03A , -210 V PNP Plastic Encapsulated Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen & lead.
