AM4185

P-CHANNEL MOSFET

AM4185 Features

* -40V/-36A, RDS(ON)= 17mΩ(max.) @ VGS=-10V RDS(ON)= 25mΩ(max.) @ VGS=-4.5V

* 100% UIS + Rg Tested

* Reliable and Rugged

* Available in TO-220F package. APPLICATION

* Power Management in LCD TV Inverter. PIN DESCRIPTION N-Channel MOSFET REV1.0 - SEP 2019 RELEASED - -1- AiT S

AM4185 Datasheet (1.10 MB)

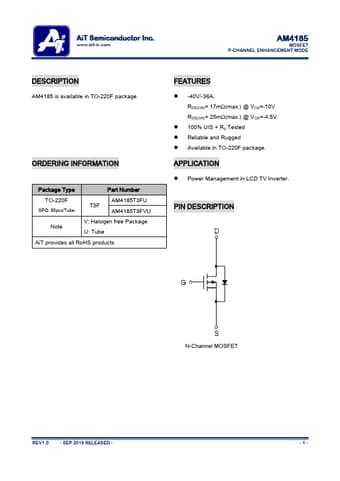

Preview of AM4185 PDF

Datasheet Details

Part number:

AM4185

Manufacturer:

AiT Semiconductor

File Size:

1.10 MB

Description:

P-channel mosfet.
