AM4953

-30V DUAL P-CHANNEL ENHANCEMENT MODE MOSFET

AiT Semiconductor

AM4953 Features

* -30V/-5.3A, RDS(ON) =46mΩ(typ.)@VGS =-10V

* -30V/-3.6A, RDS(ON) =75mΩ(typ.)@VGS =-4.5V

* Super high density cell design for extremely low RDS(ON)

* Exceptional on-resistance and Maximum DC current capability

* Available in SOP8 Package The AM4953 is available in SOP8 Package P

AM4953 General Description

The AM4953 is the Dual P-Channel logic enhancement mode power field effect transistor is produced using high cell density. Advanced trench technology to provide excellent RDS(ON). This device is suitable for use as a load switch or in PWM and gate charge for most of the synchronous buck converter ap.

AM4953 Datasheet (523.51 KB)

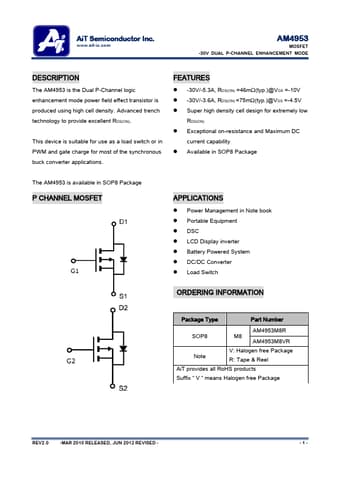

AM4953 Datasheet Preview — Preview of AM4953 PDF

Datasheet Details

Part number:

AM4953

Manufacturer:

AiT Semiconductor

File Size:

523.51 KB

Description:

-30v dual p-channel enhancement mode mosfet.
