AO2369 - OP AMPLIFIER

Features

The AO2369 has a high gain-bandwidth product of 14.5KHz, a slew rate of 6V/ms, and a quiescent current of 600nA/amplifier at 5V. The AO2369 is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3mV for AO2369.
Single-Supply Operation from +1.4V ~ +5.5V.
Rail-to-Rail Input / Output.
Gain-Bandwidth Product.

AiT Semiconductor

Datasheet Details

Part number	AO2369
Manufacturer	AiT Semiconductor
File Size	731.71 KB
Description	OP AMPLIFIER
Datasheet	AO2369 Datasheet
Additional preview pages of the AO2369 datasheet.

📁 Similar Datasheet

AO2301 - P-Channel MOSFET (SZChip)
AO2301 - P-Channel MOSFET (VBsemi)
AO2302 - N-Channel Enhancement Mode Field Effect Transistor (HAOHAI)
AO2305 - P-Channel MOSFET (HAOHAI)
AO2 - Oxygen Sensor (City Technology)
AO211 - AND / OR circuit (AMS)
AO22 - AND / OR circuit (AMS)
AO241 - AC OUTPUT MINI-SIP (Crydom)
AO241R - AC OUTPUT MINI-SIP (Crydom)

Other Datasheets by AiT Semiconductor

AO2007 - OP AMPLIFIER
AO2904 - 1.2MHZ DUAL OPERATIONAL AMPLIFIER

Full PDF Text Transcription

Click to expand full text

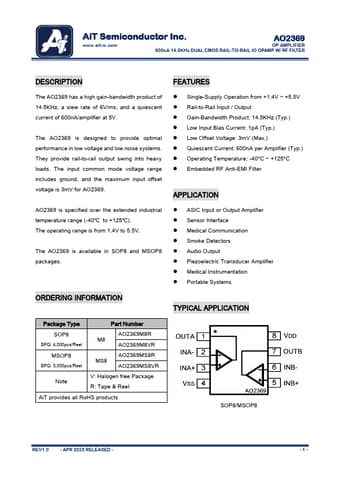

AiT Semiconductor Inc. AO2369 www.ait-ic.com OP AMPLIFIER 600nA 14.5KHz DUAL CMOS RAIL-TO-RAIL IO OPAMP W/ RF FILTER DESCRIPTION FEATURES The AO2369 has a high gain-bandwidth product of 14.5KHz, a slew rate of 6V/ms, and a quiescent current of 600nA/amplifier at 5V. The AO2369 is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3mV for AO2369.  Single-Supply Operation from +1.4V ~ +5.5V  Rail-to-Rail Input / Output  Gain-Bandwidth Product: 14.5KHz (Typ.)  Low Input Bias Current: 1pA (Typ.)  Low Offset Voltage: 3mV (Max.)  Quiescent Current: 600nA per Amplifier (Typ.
