DTC123JM, DTC114EM, NPN SILICON SURFACE MOUNT TRANSISTORS

AiT Semiconductor Inc.www.ait-ic.com DTC114EM~ DTC144TM BIAS RESISTOR TRANSISTORS NPN SILICON SURFACE MOUNT TRANSISTORS WITH MONOLITHIC BIAS RESISTO.
FEATURES This new series of digital transistors is designed to. replace a single device and its external resistor bias. network.

DTC114EM-AiTSemiconductor.pdf

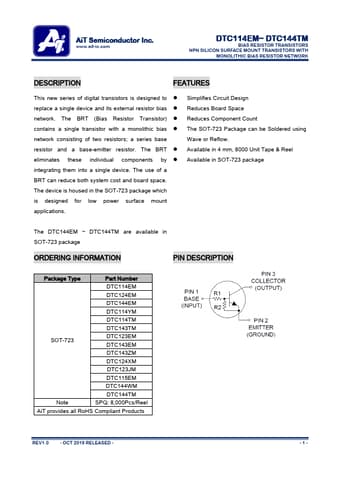

DTC123JM Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC123JM, DTC114EM. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTC123JM, DTC114EM

Manufacturer:

AiT Semiconductor

File Size:

1.06 MB

Description:

NPN SILICON SURFACE MOUNT TRANSISTORS

Note:

This datasheet PDF includes multiple part numbers: DTC123JM, DTC114EM.
Please refer to the document for exact specifications by model.

Features

* This new series of digital transistors is designed to
* replace a single device and its external resistor bias
* network. The BRT (Bias Resistor Transistor)
* contains a single transistor with a monolithic bias
* network consisting of two resistors; a series base resistor and a base
