* 1) Built-In Biasing Resistors 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) Only the on/off conditions need to be set for operation, making the circuit design easy. 4) Complementary PNP Types: DTA123
DTC123J
1.49 MB
Npn 100ma 50v digital transistors.

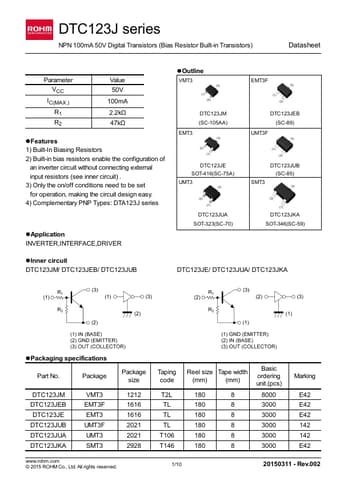

DTC123J series
NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
Parameter VCC
IC(MAX.) R1 R2
Value 50V 100mA 2.2kΩ .
