DA20-220S24G2N4, DA20-220SXXG2N4 Datasheet - Aipu Electron

DA20-220S24G2N4 AC/DC Converter

DA20-220S24G2N4 Features

* Wide input voltage range: 85-305VAC/120-430VDC

* No load power consumption≤0.15W

* Transfer Efficiency 86%(TYP.)

* Switching Frequency: 65KHz

* Protections: short circuit, over current, over voltage

* Isolation voltage:4000VAC

* Meet IEC62368/UL62368/EN62368 test standa

DA20-220SXXG2N4-AipuElectron.pdf

This datasheet PDF includes multiple part numbers: DA20-220S24G2N4, DA20-220SXXG2N4. Please refer to the document for exact specifications by model.

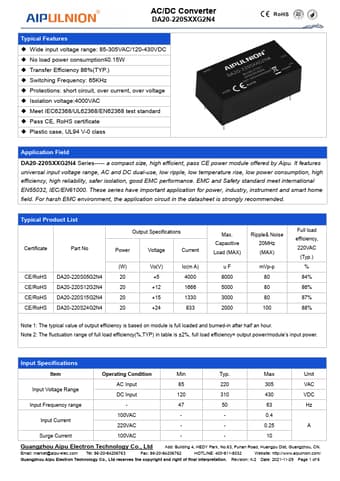

DA20-220S24G2N4 Datasheet Preview Page 2 DA20-220S24G2N4 Datasheet Preview Page 3

Datasheet Details

Part number:

DA20-220S24G2N4, DA20-220SXXG2N4

Manufacturer:

Aipu Electron

File Size:

451.74 KB

Description:

Ac/dc converter.

Note:

This datasheet PDF includes multiple part numbers: DA20-220S24G2N4, DA20-220SXXG2N4.
Please refer to the document for exact specifications by model.
