AH502 Datasheet - Alfa Electronics

AH502 High sensitivity bipolar Hall switch sensor

AH502 High sensitivity bipolar Hall switch sensor 1.Product Introduction 2.Function AH502 is a highly sensitive bipolar Hall switch AEC-Q100 Grade 0 Automotive Level chip designed based on BCDMOS technology. The chip includes temperature compensation, comparator, and output driver. In addition, mechanical stress has little effect on the magnetic parameters of the chip. The series of chip sensors is suitable for industrial and automotive applications, with an Certification .

AH502-AlfaElectronics.pdf

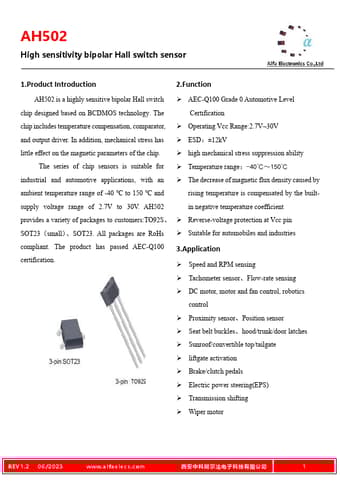

Preview of AH502 PDF
AH502 Datasheet Preview Page 2 AH502 Datasheet Preview Page 3

Datasheet Details

Part number:

AH502

Manufacturer:

Alfa Electronics

File Size:

468.09 KB

Description:

High sensitivity bipolar hall switch sensor.
