AFP7423WS Datasheet, Mosfet, Alfa-MOS

AFP7423WS Features

  • Mosfet
  • -60V/-12A,RDS(ON)= 25mΩ@VGS= -10V
  • -60V/-10A,RDS(ON)= 35mΩ@VGS= -4.5V
  • Super high density cell design for extremely low RDS (ON)
  • Exceptional on-res

PDF File Details

Part number:

AFP7423WS

Manufacturer:

Alfa-MOS

File Size:

654.94kb

Download:

📄 Datasheet

Description:

60v p-channel enhancement mode mosfet. AFP7423WS, P-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These de

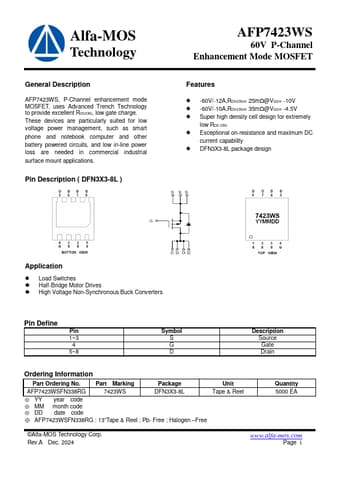

Datasheet Preview: AFP7423WS 📥 Download PDF (654.94kb)
Page 2 of AFP7423WS Page 3 of AFP7423WS

AFP7423WS Application

  • Applications Pin Description ( DFN3X3-8L ) AFP7423WS 60V P-Channel Enhancement Mode MOSFET Features
  • -60V/-12A,RDS(ON)= 25mΩ@VGS= -10V
