A4402 Datasheet, Converter, Allegro Micro Systems

A4402 Features

  • Converter ▪ 2 MHz switching frequency ▪ Adjustable soft start timer ▪ Watchdog input ▪ Power-on reset output ▪ Adjustable buck and linear regulators ▪ Enable input ▪ 6 to 50 V supply voltage rang

PDF File Details

Part number:

A4402

Manufacturer:

Allegro Micro Systems

File Size:

1.52MB

Download:

📄 Datasheet

Description:

Constant on-time buck converter. The A4402 is a dual-output regulator, combining in a single package a constant on-time buck regulator and a linear regulator (LDO)

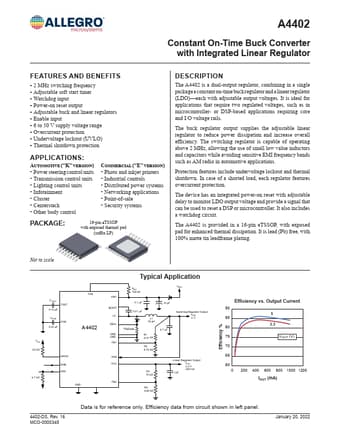

Datasheet Preview: A4402 📥 Download PDF (1.52MB)
Page 2 of A4402 Page 3 of A4402

A4402 Application

  • Applications Automotive (“K” version)
  • Power steering control units
  • Transmission control units
  • Lighting control units
