A4408

Adjustable Frequency Buck or Buck-Boost Pre-Regulator

Allegro Micro Systems

A4408 Features

* Automotive AEC-Q100 qualified

* 2.8 to 36 VIN operating range, 40 VIN maximum

* Buck or buck-boost pre-regulator (VREG)

* Adjustable PWM switching frequency: 250 kHz to 2.4 MHz

* PWM frequency can be synchronized to external clock

* Adjustable synchr

A4408 General Description

The A4408 is power management IC that uses a buck or buck-boost pre-regulator to efficiently convert automotive battery voltages into a tightly regulated intermediate voltage, complete with control, diagnostics, and protections. The output of the pre-regulator supplies a 5 V / 115 mAMAX tracking/pro.

A4408 Datasheet (3.29 MB)

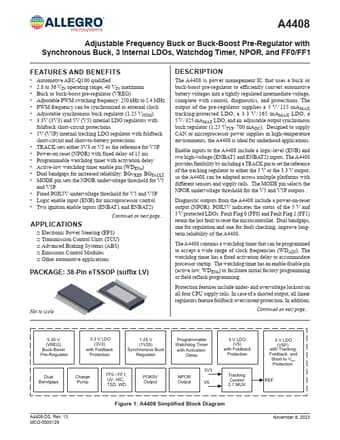

A4408 Datasheet Preview — Preview of A4408 PDF

Datasheet Details

Part number:

A4408

Manufacturer:

Allegro Micro Systems

File Size:

3.29 MB

Description:

Adjustable frequency buck or buck-boost pre-regulator.
