A4410

Adjustable Frequency Buck or Buck/Boost Pre-Regulator

A4410 Features

* Automotive AEC-Q100 qualified

* 2.8 VIN to 36 VIN operating range, 40 VIN maximum

* Buck or buck/boost pre-regulator (VREG)

* Adjustable PWM switching frequency: 250 kHz

* 2.4 MHz

* PWM frequency can be synchronized to external clock

* 1.25 V

A4410 General Description

The A4410 is power management IC that uses a buck or buck/ boost pre-regulator to efficiently convert automotive battery voltages into a tightly regulated intermediate voltage complete with control, diagnostics, and protections. The output of the pre-regulator supplies a 5 V/250 mAMAX tracking/prote.

A4410 Datasheet (1.63 MB)

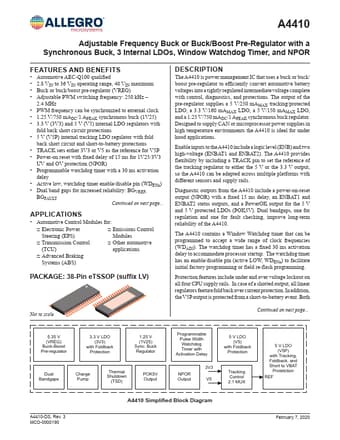

Preview of A4410 PDF

Datasheet Details

Part number:

A4410

Manufacturer:

Allegro Micro Systems

File Size:

1.63 MB

Description:

Adjustable frequency buck or buck/boost pre-regulator.
